- The Stellar 100 offers a wide range of therapy modes to suit various needs.
- The Intelligent Ventilation System provides tailored programs for different periods, enhancing therapy effectiveness with personalized care.
- Equipped with an internal battery providing up to 2 hours of continuous support, the Stellar 100 ensures uninterrupted care, even on the go.
- With optional oxygen integration supporting flow rates of up to 30 L/minute, therapy can be personalized to individual respiratory needs, enhancing overall effectiveness.
- The Stellar 100 features two customizable pre-set programs, allowing users to tailor therapy to their lifestyle for ease of use and optimal care.

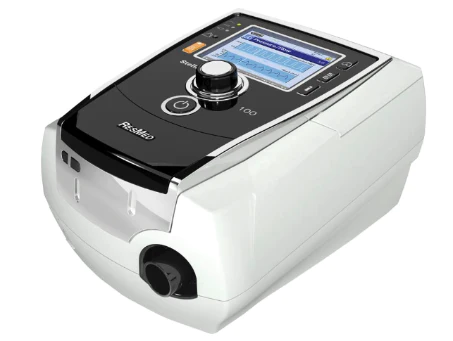

Resmed Stellar 100 Ventilator Specifications:
| Modes | ST (Spontaneous–Timed)
PAC (Pressure Assisted Control)
CPAP (Continuous Positive Airway Pressure)
S (Spontaneous)
T (Timed) |
|---|
| Pressure range | IPAP: 2–40 cm H2O
EPAP: 2–25 cm H2O |
| TiControl™ | Ti Max 0.3–4 sec
Ti Min 0.1–Ti Max |
| Respiratory Rate | 5–60 bpm |
| Rise Time | Min, 150–900 msec (approx.) |
| Trigger and Cycle | Five sensitivity settings |
| Adjustable alarms | High Leak
Low Minute Ventilation
Low and High Pressure
Low and High Respiratory Rate
Apnoea
Low and High FiO2
Low SpO2
Non-vented mask |
| Standard fixed alarms | Circuit disconnected
Over pressure
Blocked tube
Internal battery empty |
| Dimensions (LxWxH) | 230 x 170 x 120 mm |
| Weight | 2.1 kg |
| Air filter | Electrostatic fibre mesh |
| Air outlet | 22 mm taper, compatible with ISO5356–1:2004 |
| Internal battery | Lithium-ion, 2 hours at EPAP 5, IPAP 15, 20 bpm |
| Power supply | AC 100–240V 50–60Hz,
2.2A AC 110V 400Hz,
2.2A DC 24V/3A |
| Waranty | 3 Years |
Resmed Stellar 100 Ventilator Video:
Resmed Stellar 100 Ventilator FAQs
Q: How often should I clean the ventilator?
A: It is recommended to clean the ventilator and its components daily using mild soap and water. Regular cleaning helps maintain optimal performance and reduces the risk of contamination.
Q: Can I use the Stellar 100 Ventilator during travel?
A: Yes, the ventilator is lightweight and portable, making it suitable for travel use. It allows users to continue their therapy regimen while away from home, ensuring consistent treatment and improved health outcomes.
Q: What is the warranty period for the Stellar 100 Ventilator?
A: The warranty period for the Stellar 100 Ventilator is typically 3 year from the date of purchase. However, warranty terms may vary by region, so it’s advisable to check with your supplier or Resmed for specific details.
Q: How do I adjust the settings on the ventilator?
A: The ventilator features an intuitive user interface for easy adjustment of settings. Refer to the user manual for detailed instructions on navigating the menu and customizing therapy settings according to your preferences.
Q: Can I use the Stellar 100 Ventilator without a prescription?
A: Stellar 100 Ventilator is a medical device that requires a prescription from a qualified healthcare professional.
Q: Is the Stellar 100 Ventilator compatible with all types of masks?
A: The Stellar 100 Ventilator is compatible with a wide range of masks, including nasal masks, full-face masks, and nasal pillow masks.
Q: How long does the battery last on the Stellar 100 Ventilator?
A: The internal battery of the Stellar 100 Ventilator provides up to 2 hours of continuous support. It is recommended to fully charge the battery before use, especially when planning extended periods away from a power source.
Q: Can I adjust the airflow settings during therapy?
A: Yes, the Stellar 100 Ventilator allows users to adjust airflow settings during therapy to suit their comfort and respiratory needs. The device features intuitive controls for easy customization of airflow parameters.
Q: Is the Stellar 100 Ventilator suitable for pediatric use?
A: Yes, the Stellar 100 Ventilator can be used for pediatric users under the guidance of a healthcare professional. The device offers customizable settings to meet the specific needs of pediatric users, ensuring safe and effective respiratory support.
Q: How do I troubleshoot common issues with the Stellar 100 Ventilator?
A: If you encounter any issues with the Stellar 100 Ventilator, refer to the user manual for troubleshooting tips and instructions. Additionally, you can contact Resmed customer support for further assistance and technical support.
Q: Can I clean the mask and tubing in the dishwasher?
A: No, it is not recommended to clean the mask and tubing of the Stellar 100 Ventilator in the dishwasher. It’s best to follow the manufacturer’s instructions for cleaning and disinfecting these components to maintain their integrity and performance.
Q: What should I do if the ventilator displays an error message?
A: If the ventilator displays an error message, refer to the user manual for troubleshooting steps specific to the error code. If you’re unable to resolve the issue, contact Resmed customer support for assistance.
Q: Can I use the Stellar 100 Ventilator in high altitudes?
A: Yes, the Stellar 100 Ventilator is designed to operate effectively in high-altitude environments. However, it’s essential to ensure proper adjustment of altitude settings according to the user manual to maintain therapy efficacy.
Q: How do I know if the mask is fitted correctly?
A: A properly fitted mask should create a secure seal around the nose and mouth without causing discomfort or air leaks. Follow the mask fitting instructions provided with the ventilator to ensure proper fit and seal for effective therapy.
Q: Can I use the Stellar 100 Ventilator without the humidifier?
A: Yes, the Stellar 100 Ventilator can be used without the humidifier if preferred. However, using the humidifier can help prevent dryness and irritation in the airways, enhancing overall therapy comfort.
